Series Name

• Series Name
  DM-E Series

Display

• Screen Size
  48"
• Panel Technology
  60Hz D-LED BLU
• Resolution
  1920x1080
• Aspect Ratio
  16:9
• Brightness
  450nit
• Contrast Ratio (Typical)
  5000:1
• Viewing Angle (H/V)
  178:178
• Response Time
  8ms

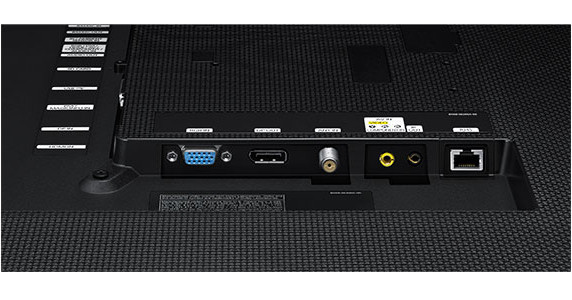

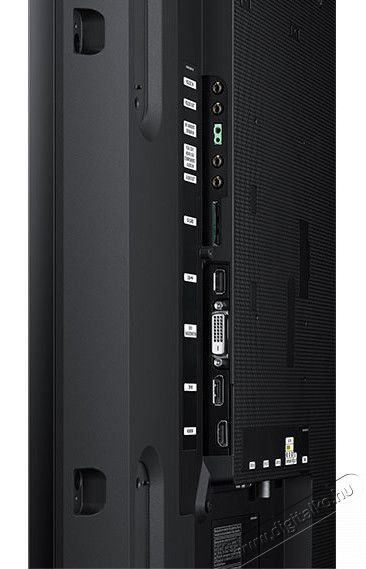

Connectivity

• Input
  VGA (D-Sub 15 Pin), DVI-D(HDMI Common), Display Port 1.2, HDMI1 Component/Composite, Stereo mini Jack, USB 2.0 x 1
• Output: DP1.2(Loop-out), Stereo mini Jack
• External Control: RS232C (In/Out) thru Stereo Jack, RJ46
• Sensor
  IR, Ambient Light

Power

• Power Supply
  AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
• Power Consumption (Typical/Max)
  50W / 132W
• Power Consumption (Standby)
  < 0.5W

Environmental Conditions

• Operating Temperature
  0℃~ 40℃
• Operating Humidity
  10~80%

Features

• Special
  Hardware: Super Clear Coating, Temperature Sensor, Video Wall(15x15), Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W x 2), WiFi Module Embedded, SD Card Slot, Tuner(only for NA, KR)
  Software: Magic Clone(to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC,Plug and Play, PIP/PBP, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(HDCP Support), Built In MagicInfo Player S3, Firmware Update by Network, LFD New Home Screen, PC-less VideoWall, Predefined Template for Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player, PC-less Touch, MagicPresenter
• SMART Signage Platform
  Yes
• Built-in Tuner
  Yes
• Media Player Type
  Cortex-A9 1GHz Quad Core CPU, 1.5GB, DDR3-933, 8GB, USB 2.0, Linux OS
• 24/7 Operation
  Yes
• Built-in Speakers
  10Wx2

Dimensions

• Without Stand (W x H x D)
  42.3" x 24.4" x 2"
• Packaging (W x H x D)
  46.7" x 28.1" x 5.8"
• Bezel Width
  9.5mm (Top/Side), 15.0mm (Bottom)

Weight

• Product Weight
  24.5 lb.
• Package Weight
  30.9 lb.

Service

• Standard Warranty
  3 years onsite parts/labor

Included in Box

• Included in Box
  Quick Setup Guide, Regulatory Guide, Warranty Card, D-Sub cable, Power Cord, Remote Controller, Batteries, RS232C(IN) adapter, Cover-Jack, Screw (M3L8, 1EA) (M4L8, 4EA)
• Optional Wall Mount Kit
  WMN4270SD, WMN450MD, WMN250MD, WMN4675MD, CML450D (Ceiling Mount)
• Optional Stand
  STN-L4655E
• Optional Media Player
  SBB (Optional)

Green Management

• RoHS Compliant
  Yes
• Emission Standard
  EMC
• Packaging Recyclability
  Yes, Packing Materials

Mechancial Specs

• VESA Mount
  400x400mm
