SONY PMW-100 Professzionális XDCAM kamera Fényképezőgép / kamera

Főoldal Fényképezőgép / kamera Professzionális XDCAM kamera SONY PMW-100

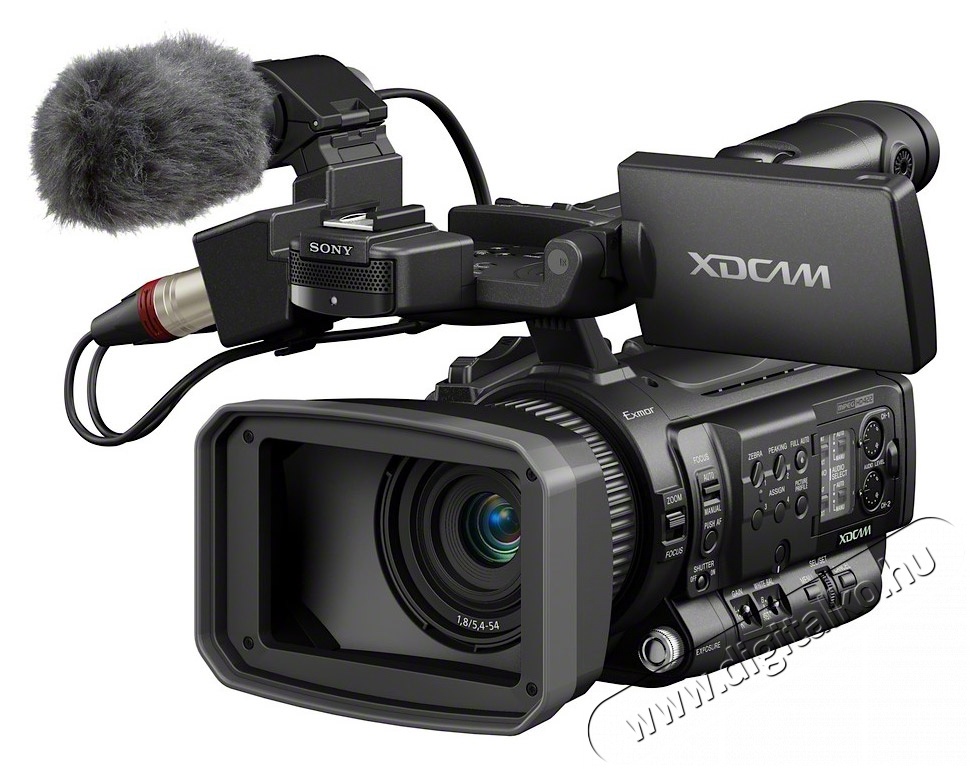

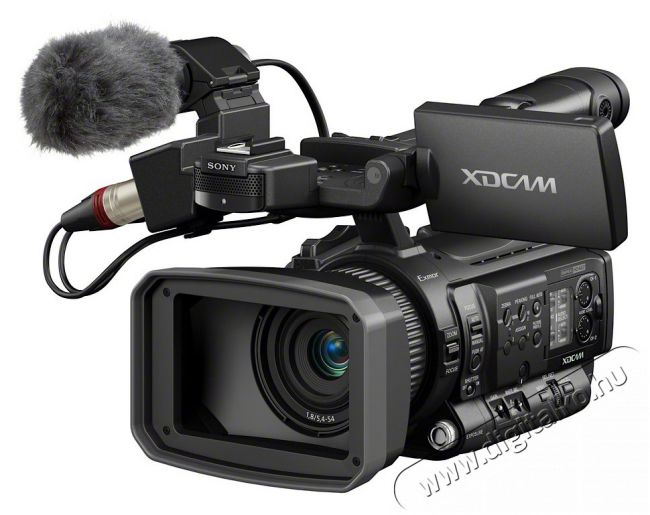

SONY PMW-100

Cikkszám: 256255

Előző

Következő

+ Ajándék

10.000Ft értékű vásárlási utalvány.

Kedvencekhez ad

Értesítés árcsökkenésről

A beszállító által legutóbb ajánlott kiskereskedelmi eladási ár.

1.399.900 Ft

Mai ár:

1.099.480 Ft (865.732 Ft + 27% ÁFA)

Kifutott, már nem rendelhető!

3 év hivatalos gyári, magyar garancia

Visszahívást kérek

Gyors üzenetet küldök

Kedvencekhez ad

Értesítés árcsökkenésről

Műszaki adatok

Professzionális XDCAM Full HD memóriakártyás videokamera

General

Mass:

Approx 1.5 kg (body)
Approx. 1.8 kg (with lens hood, eye piece, BP-U30 battery, a SxS memory card)

Power Requirements: DC 12 V
Power Consumption: "Approx. 12 W (while recording, EVF On, LCD monitor Off, IO Select Off)"
Operating Temperature: 0°C to 40°C
Storage Temperature: -20°C to +60°C
Continuous Operating Time: Approx. 2 hrs with BP-U30 battery (while recording, HQ 1920 59.94i mode, EVF On, LCD monitor Off, I/O Select Off)"
Dimensions (W x H x D)*1
Recording Format (Video):

HD422 mode: CBR, maximum bit rate: 50 Mbps, MPEG-2 422P@HL
HD420 mode: VBR, 35 Mbps, MPEG-2 MP@HL
DVCAM mode: DVCAM

HQ 1920 mode: VBR, 35 Mbps, MPEG-2 MP@HL
HQ 1440 mode: VBR, 35 Mbps, MPEG-2 MP@HL
SP 1440 mode: CBR, 25 Mbps, MPEG-2 MP@H-14
DVCAM mode: DVCAM

Recording Format (Audio):

HD422 mode: LPCM 24 bits, 48 kHz, 4 channels
Other mode: LPCM 16 bits, 48 kHz, 4 channels

HD mode: LPCM 16 bits, 48 kHz, 4 channels
SD mode: LPCM 16 bits, 48 kHz, 2 channels

HD 422 mode

Recording/Playback Time (MPEG HD):

Approx. 120 min with SBP-64/ SBS-64G1A (64 GB) memory card
Approx. 60 min with SBP-32/ SBS-32G1A (32 GB) memory card
Approx. 30 min with SBP-16 (16 GB) memory card
HD 420 mode:

Approx. 180 min with SBP-64/ SBS-64G1A (64 GB) memory card
Approx. 90 min with SBP-32/ SBS-32G1A (32 GB) memory card
Approx. 45 min with SBP-16 (16 GB) memory card

DVCAM mode:

Approx. 220 min with SBP-64/ SBS-64G1A (64 GB) memory card
Approx. 110 min with SBP-32/ SBS-32G1A (32 GB) memory card
Approx. 55 min with SBP-16 (16 GB) memory card

Recording/Playback Time (MPEG HD):

HQ 1920/HQ 1440 mode:

Approx. 200 min with SBP-64/ SBS-64G1A (64 GB) memory card
Approx. 100 min with SBP-32/ SBS-32G1A (32 GB) memory card
Approx. 50 min with SBP-16 (16 GB) memory card

SP 1440 Mode:

Approx. 280 min with SBP-64/ SBS-64G1A (64 GB) memory card
Approx. 140 min with SBP-32/ SBS-32G1A (32 GB) memory card
Approx. 70 min with SBP-16 (16 GB) memory card

DVCAM mode

Approx. 260 min with SBP-64/ SBS-64G1A (64 GB) memory card
Approx. 130 min with SBP-32/ SBS-32G1A (32 GB) memory card
Approx. 65 min with SBP-16 (16 GB) memory card

Recording Frame Rate:

HD422 Mode: MPEG-2 422P@HL, 50Mbps/ CBR
1920x1080/ 59.94i, 50i, 29.97p, 25p, 23.98p
1280x720/ 59.94p, 50p, 29.97p, 25p, 23.98p
HD420 Mode: MPEG-2 MP@HL, 35Mbps/ VBR
1440x1080/ 59.94i, 50i, 29.97p, 25p, 23.98p
1280x720/ 59.94p, 50p, 23.98p

DVCAM Mode

720x480/ 59.94i, 29.97PsF
720x576/ 50i, 25PsF

Recording Frame Rate:

HQ 1920 Mode: MPEG-2 MP@HL, 35Mbps/ VBR
1920x1080/ 59.94i, 50i, 29.97p, 25p, 23.98p
HQ 1440 Mode: MPEG-2 MP@HL, 35Mbps/ VBR
1440x1080/ 59.94i, 50i, 29.97p, 25p, 23.98p
HQ 1280 Mode: MPEG-2 MP@HL, 35Mbps/ VBR
1280x720/ 59.94p, 50p, 29.97p, 25p, 23.98p
SP 1440 Mode: MPEG-2 MP@H-14, 25Mbps/ CBR
1440x1080/ 59.94i, 50i, 23.98p (2-3 pull down)

DVCAM Mode

720x480/ 59.94i, 29.97PsF
720x576/ 50i, 25PsF
Fixed

Lens

Lens Mount:

10x (optical), servo/manual
f = 5.4 - 54 mm (equivalent to 40-400 mm on 35 mm lens)

Focus:

M37 mm, pitch 0.75mm
BNC (x1) (switchable to Video out) 1.0 Vp-p, 75Ω"

Input/Output

Genlock Input: BNC (x1) (switchable to TC in) SMPTE 12M-2-2008 standard 1.0Vp-p, 10kΩ"
SDI Input:

XLR-type 3-pin (female) (x2), line/mic/mic +48 V selectable
Line: +4dBu
Mic: -30dBu--70dBu"
BNC (x1), HD/SD selectable
SMPTE 292M/259M standards"
A/V multi connector -10dBu (Reference Level), 47kΩ"

Video Output:

BNC (x1) (switchable to TC in)
SMPTE 12M-2-2008 standard
1.0Vp-p, 10kΩ"

Audio Output:

Stereo mini jack (x1)
-18dBu 16Ω"

Timecode Output: Monaural, 250mW
Earphone Output: DC jack
Remote: IEEE 1394, 4-pin (x1), HDV (HDV 1080i) / DV input/output, S400
Composite Output:

USB device, mini-B (x1)
Type A (x1)

Crosstalk: 1920 (H) x 1080 (V)

Camera Section

Built-in Optical Filters: 1/32 sec to 1/2,000 sec
Shutter Speed (Time):

2, 3, 4, 5, 6, 7, 8, 16, 32, and 64-frame accumulation
720p: Frame rate selectable from 1 fps to 60 fps

Shutter Speed (Slow Shutter (SLS))
Sensitivity (2000 lx, 89.9% reflectance):

0.40 lx (typical) (1920 x 1080/59.94i mode, F1.8, +18 dB gain, with 64-frame accumulation, Gamma off, 100% video level)
0.08 lx (typical) (1920 x 1080/59.94i mode, F1.8, +18 dB gain, with 64-frame accumulation, Gamma on, 50% video level)
