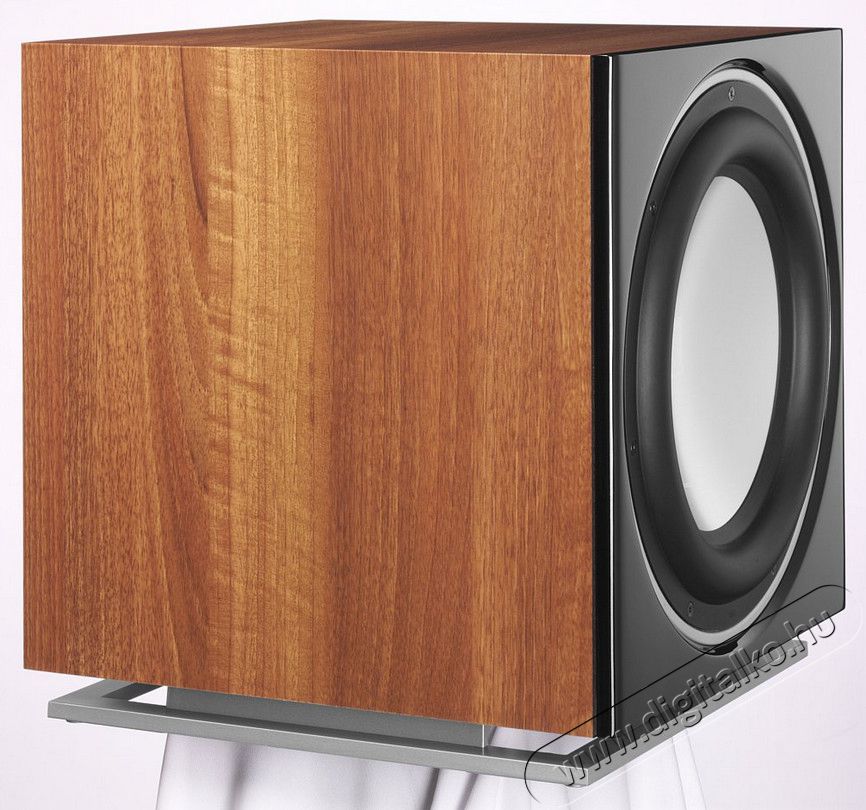

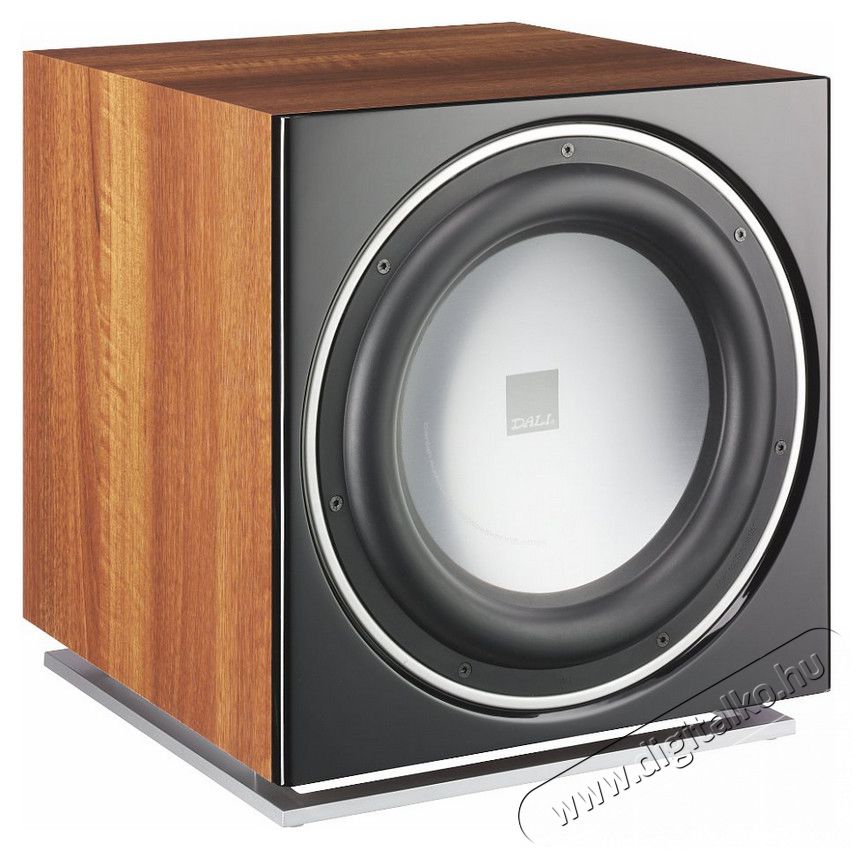

The launch of the DALI SUB E-12 F marks a new stage of what is possible at this level of subwoofers.
The new subwoofer from DALI features a 12” woofer, capable of moving plenty of air with power and precision. The cone is made from pure aluminium for maximum stiffness and a becoming exterior. Furthermore, the heavy magnet system wields a massive 4-layer, long-stroke voice coil.
All in all, the heavy-duty abilities of this “motor system” ensure that the woofer always follows the signal from the amplifier!
The heart of this subwoofer is the 170W RMS Class D amplifier with a highly linear response. Embracing a classic DALI trademark, it simply acts as a total low frequency extension of your AV system. The result is a powerful, well-balanced bass reproduction and flawless integration with your speakers. In addition, the integrated limiter helps protecting your subwoofer against overloading.
The back plate of SUB E-12 F features controls for volume adjustment, phase, and upper cut-off frequency, while the power on/off function works automatically via signal detection. And with the options for LFE or LINE inputs, this subwoofer easily accompanies any AV set up.

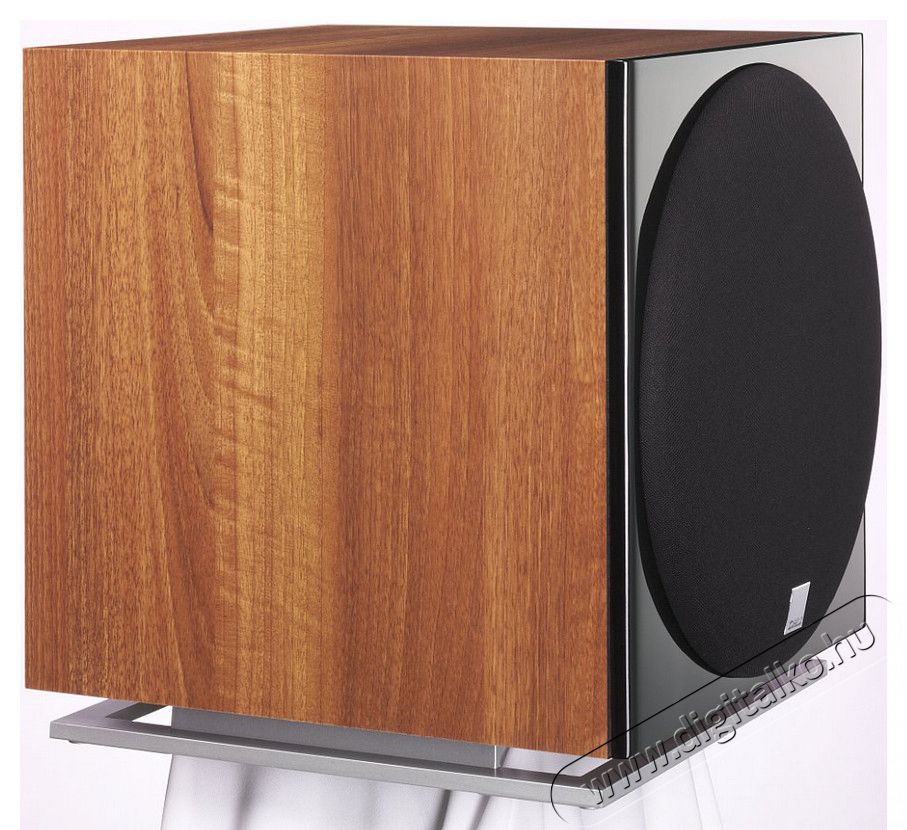

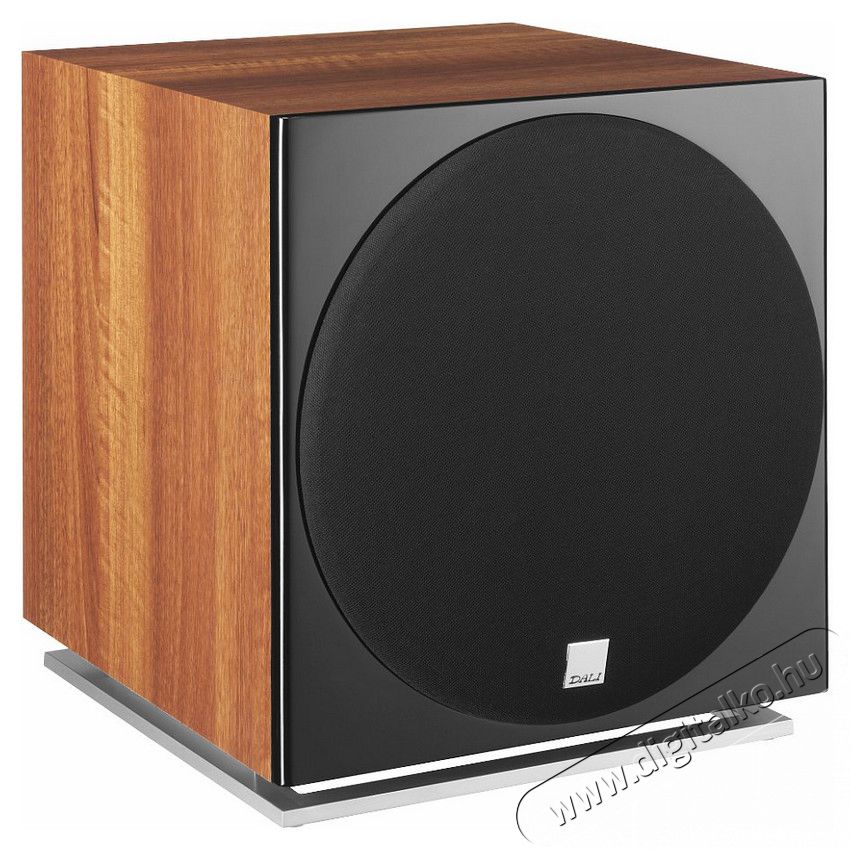

SUB E-12 F is elevated from the floor by an aluminium base, while a down-firing bass port allows positioning directly against the wall. The front grille is mounted by magnets only – and when removed, the visual appearance changes from discreet to extravagant as the pure aluminium cone is revealed.
The DALI SUB-12 F is recommended as compliment to the new ZENSOR series and is compatible with all DALI loudspeakers as the perfect completion of a DALI surround set up.
Széria | Subwoofers |
Hangsugárzó típus | Subwoofer |
Frequencia tartomány (+/-3 dB) [Hz] | 28 - 190 |
Maximum SPL [dB] | 112 |
Keresztváltási Frequencia [Hz] | 40 - 120 |
Mély Hangsugárzó | 1 x 12" long stroke Polymere Aluminimum |
Hangfaldoboz Típusa | Bass Reflex |
Bass Reflex Tuning Frequencia [Hz] | 36.0 |
Max. Erősítő Teljesítmény Kimenet [RMS watt] | 220 |
Folyamatos IEC Teljesítmény Kimenet [RMS watt] | 170 |
Bemeneti Impedancia [Ω] | 25k |
Bemeneti Csatlakozó | Mono line level (LFE) Stereo line level (low pass filtered) RCA |
Mágneses Árnyékolás | No |
Ajánlott Elhelyezés | Floor Near wall or corner |
Ajánlott Faltól Való Tásvolság [cm] | > 5 |
Funkciók | Crossover Frequency Phase Switch Standby (Auto Power) On/Off Switch Volume (Gain) |
Maximum Teljesítmény Felvétel [W] | 250 |
Max. Méterek Alaplappal és Előlappal (MAxSZxMÉ) [mm] | 370 x 340 x 380 |
Tömeg [kg] | 14.7 |
Tartozékokkal | Manual Rubber Bumpers Spikes M6 |
Kivitel | Black Ash Vinyl Light Walnut Vinyl White Vinyl |
